KSR-10

Drain cover and inspection box for extensive green roofs

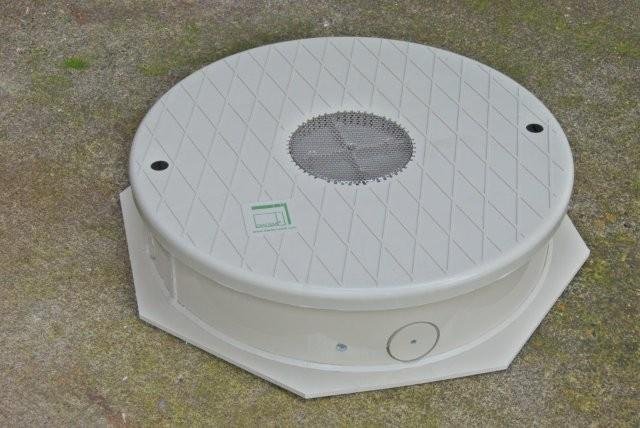

KSR-10 drain cover and inspection boxes are typically installed on extensive green roofs with a standard 4" build up to ensure unhindered linear drainage, to simplify the inspection and maintenance of drainage outlets. It also prevents contamination and stops plants from growing over the outlet.

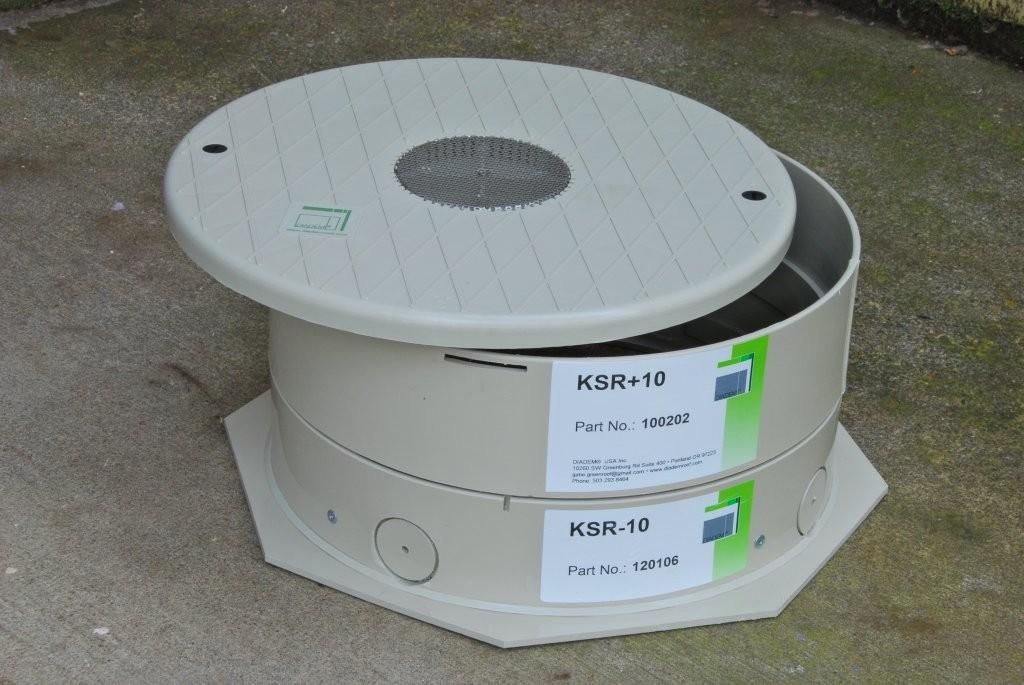

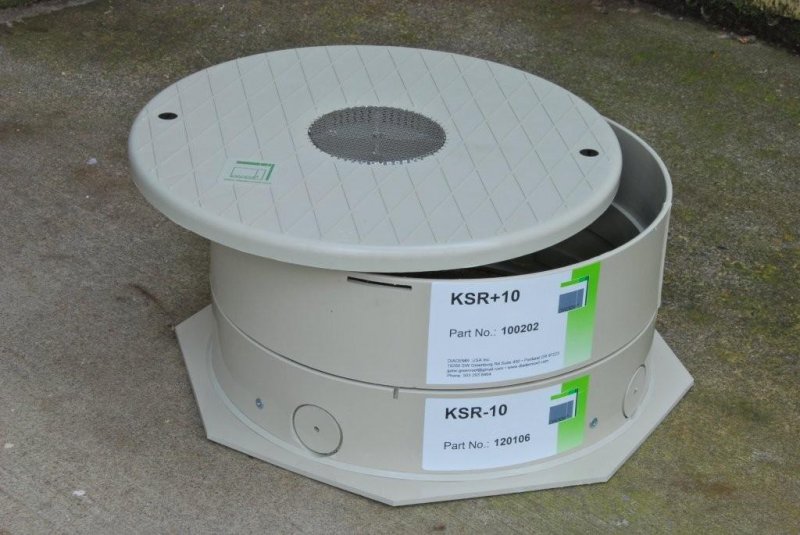

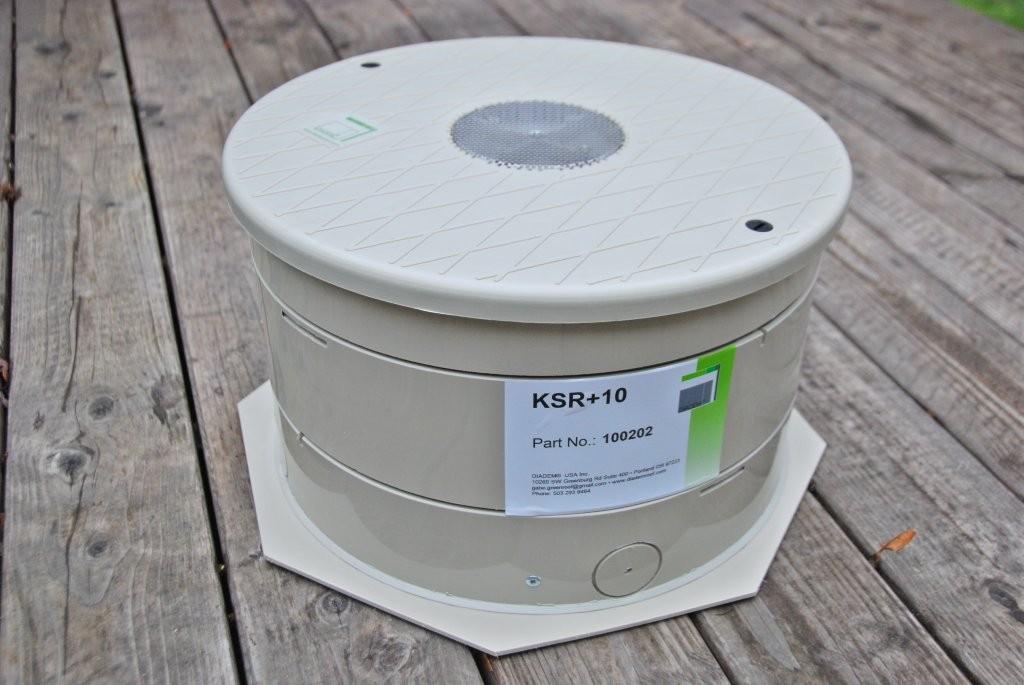

The KSR-10 drain cover and inspection box that is typically installed on extensive green roofs, with a 4" build up, to help ensure protection and scheduled maintenance of outlets. The KSR is designed to protect drain outlets from UV light, foot traffic, debris, and plant growth, all while allowing proper water flow into the drain. With the aid of the height extension elements KSR+5 and KSR+10 (2" and 4" in height, respectively), it is easy to modify the product height to meet the required substrate depth.

• Can be used on all types of green roofs no matter what type of installed outlet
• Compatible with most drainage systems, including drainage pipes and conduits,
• The lid is lockable and it can withstand foot traffic
• The built-in lid filter prevents debris from washing into the outlet
• It prevents sunlight getting into the outlet
• The inspection boxes have four plug-ins for 2" diameter drainpipes

• Stainless Steel Grill lid #030609
• Cast iron lid for heavily trafficked roof gardens
• Thermal insulated lids
• KSR+ extension rings #100113
