000. Part No.
120191U0010. Product Name
D16"KSR-15
020. Short Description
Drain cover and inspection box for intensive green roofs

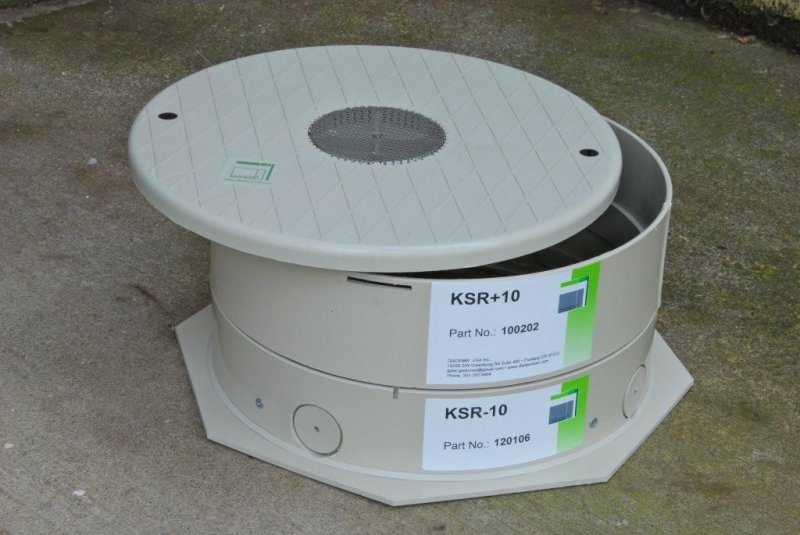

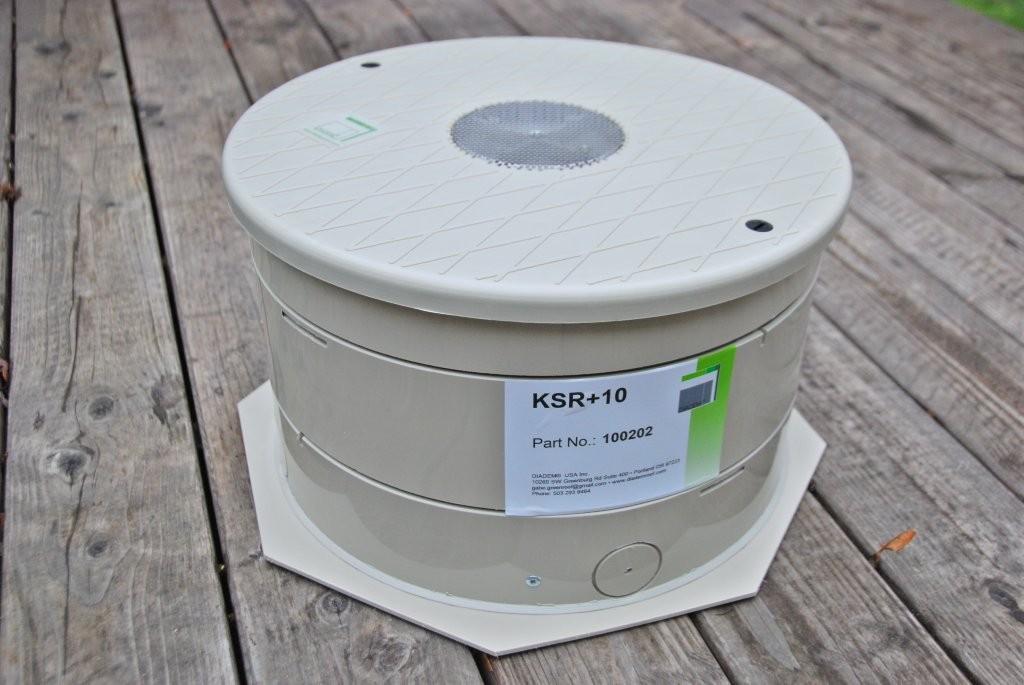

040. Typical Photo
[download]
070. Product Description
The D16" KSR-15 drain cover and inspection boxes are typically installed on intensive green roofs with an 8" on deeper build up to ensure unhindered linear drainage, to simplify the inspection and maintenance of drainage outlets. It also prevents contamination and stops plants from growing over the outlet.
080. Application
The D16"KSR-15 drain cover and inspection box that is typically installed on intensive green roofs, with a 8" or deeper build up, to help ensure protection and scheduled maintenance of outlets. The KSR is designed to protect drain outlets from UV light, foot traffic, debris, and plant growth, all while allowing proper water flow into the drain.
With the aid of the height extension elements KSR+12 and KSR+24 (6" and 12" in height, respectively), it is easy to modify the product height to meet the required substrate depth.
090. Frequently Asked Questions
- What determines the height of the product?
With the aid of the 2" and 4" extension elements it is easier to follow the thickness of the substrate and thus adjust the height of the product accordingly.
- Why is the use of inspection boxes recommended for green roofs?
Additionally, these products increase the ease of both inspection and maintenance without requiring complicated dismantling of the system.
- Why is a gravel strip necessary around an inspection box?
100. Benefits
- Can be used over all types of roof outlets
- The lid is lockable and it can withstand foot traffic and wind uplift
- The optionally built-in safety lid provides secondary level of safety
- It prevents sunlight getting into the outlet

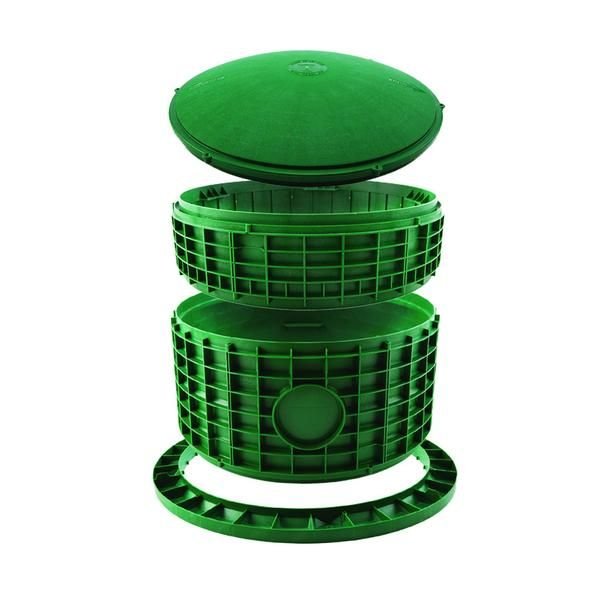

- The image on the right shows the Base, the 12" and the 6" Raiser and the Lid >>
110. Accessories
- Stainless Steel Grill lid #030609
- Cast iron lid for heavily trafficked roof gardens
- Thermal insulated lids
- KSR+ extension rings #100113
