000. Part No.
160612010. Product Name
DiaDomino-DP
020. Short Description
Sloped roof system

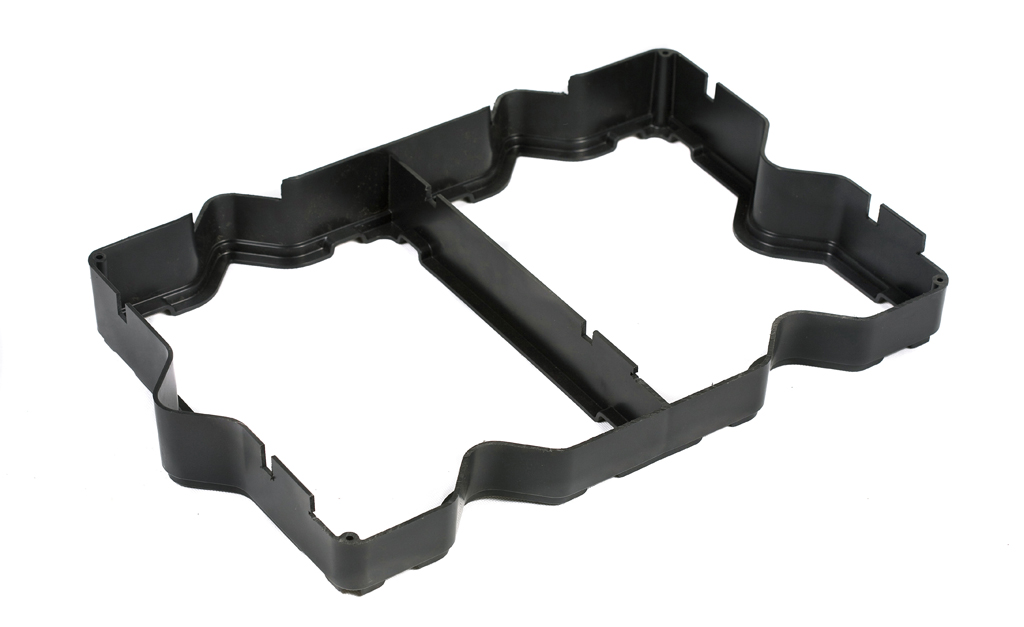

040. Typical Photo
[download]
070. Product Description

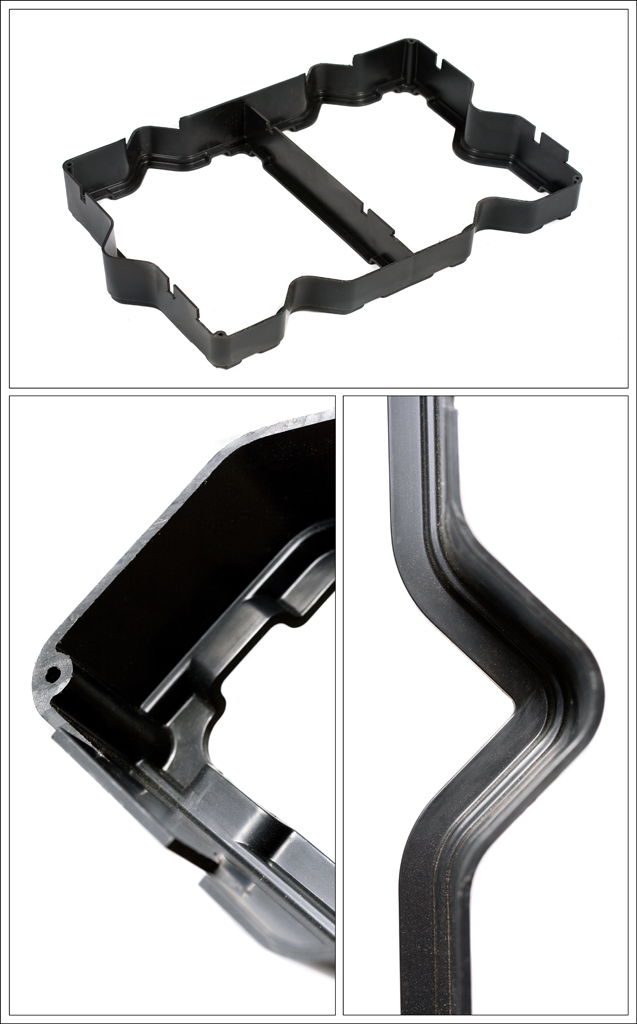

Recycled composite cells developed for sloped green roof systems. The cells come with composite bars to be fixed to each other. The DiaDomino-DP system is mainly used to install extensive green roofs with a 20° to 50-degree slope.
080. Application

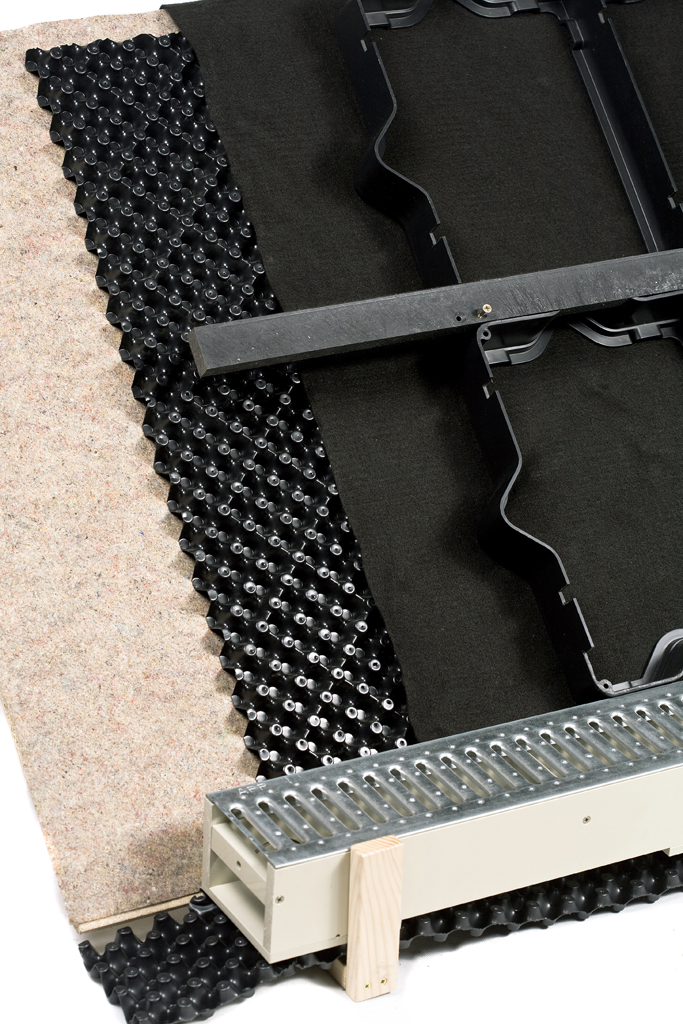

The DiaDomino-DP system is mainly used to install extensive green roofs on a 20 to 50-degree (4:12 to 14:12) slope. Due to its modular design it is great for flat, dome, curved and pitched roofs as well. The vegetation can be placed directly in the cells filled with growing media, or by using precultivated mats on the top of the media. The cells are prepared to receive irrigation conduits; pipes drip into receiving grooves, so the system can be hidden in the cell layer.
090. Frequently Asked Questions
- What is the longest installation line towards waterflow?
- What are the system needs at the gutters?
100. Benefits
