000. Part No.
162061010. Product Name
KLS-AL-8/12-TK
020. Short Description
Telescopically extendable gravel board
040. Typical Photo
[download]
070. Product Description

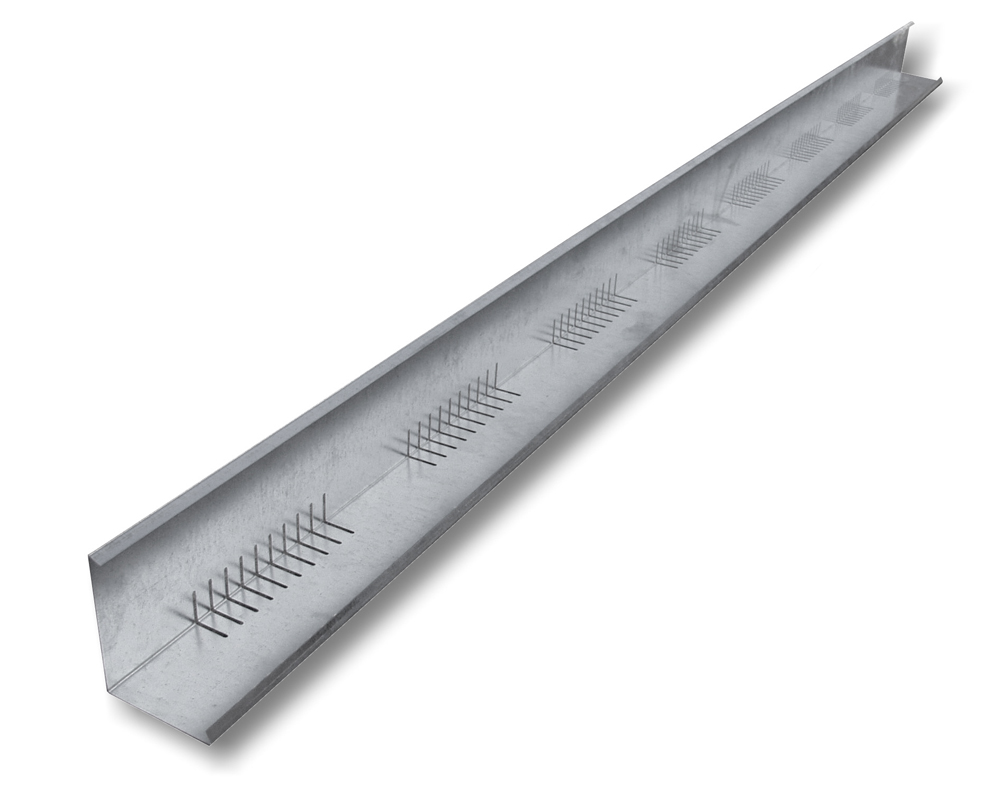

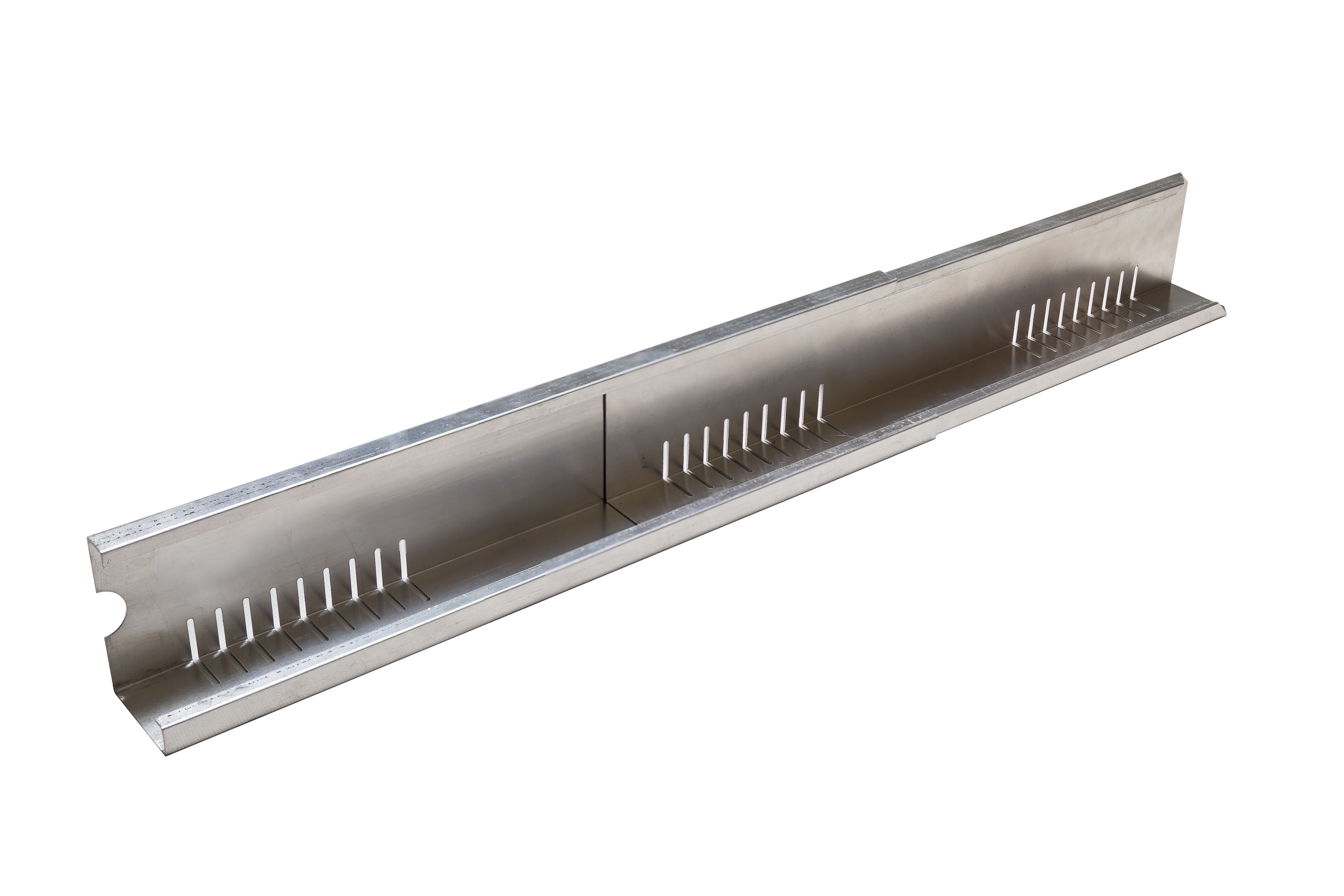

KLS-TK telescopic trim, five edge profile is L-shaped and made of aluminum or stainless steel with perforations along the main fold for continuous drainage. The 6.5 feet long pieces have an insert of the same length, making it extendable and easy to join, saving time for the installation and making it safer since cuts are unnecessary. Typically they are self supporting without membrane penetration.
080. Application
KLS telescopic, also known as extending gravel boards, provide vertical separation between different aggregates with a maximum height difference of 9 inches. In addition they can also be used for edging extensive green or flat roofs, taking special conditions into consideration (eg. roof with no parapet wall).
090. Frequently Asked Questions
- Corner formation?
- Which side is installed upright?
- How can they be fastened?
On an exposed edge however, Diadem will supply an anchor piece along with a self-adhesive mat to prevent movement without the need to penetrate the underlying layers.
100. Benefits
- Easy and quick installation
- Less storage space required, thanks to the 6.56 feet long units that are extendible to almost 13 feet.
- Any angle corner can be easily created
- Does not impede water drainage
110. Accessories
- Corner pieces available for every size to match the gravel boards (KLS-AL-6/9-TK-E, KLS-AL-9/6-TK-E, KLS-AL-8/12-TK-E, KLS-AL-12/8-TK-E, KLS-AL-14/22-TK-E, KLS-AL-22/14-TK-E)

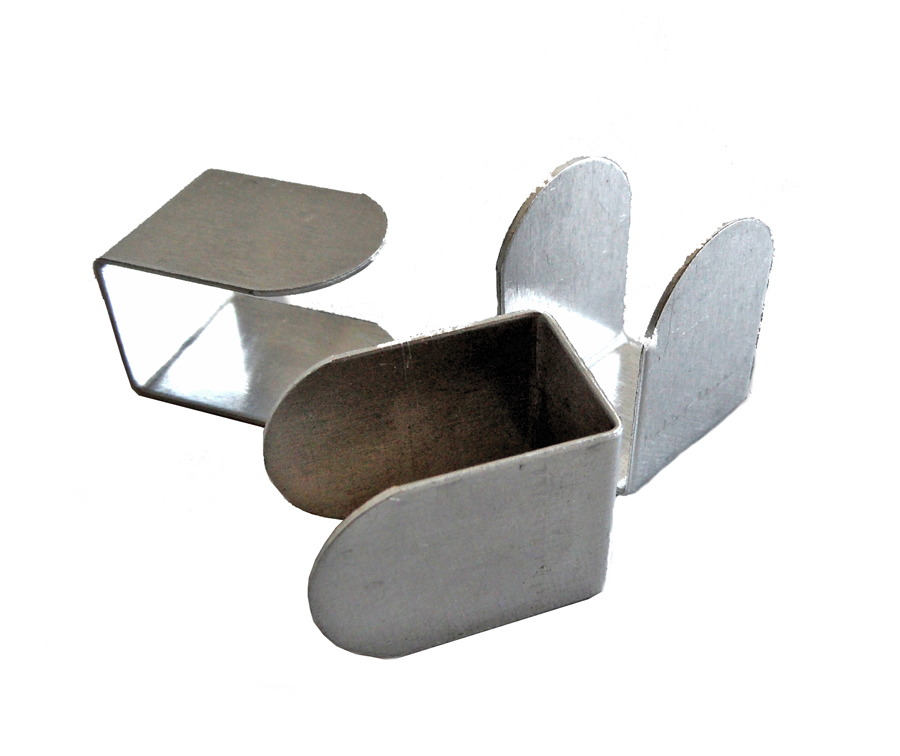

- U-shaped locking tabs(it comes with every board piece)
- VLU-300 Fixing geotextile (roll size: 164'×2'-6")
- Composite piece to fix fabrics into the element (KLSD-6/9, KLSD-8/12, KLSD-14/22)
- KLSA/KLRA fixing profile incl. fexible self adhesive sheet
