TRS-100-FF

[page options]
- [print]

000. Part No.

210405

010. Product Name

TRS-100-FF

020. Short Description

Large drainable grille for use in front of doorways at roof terraces.

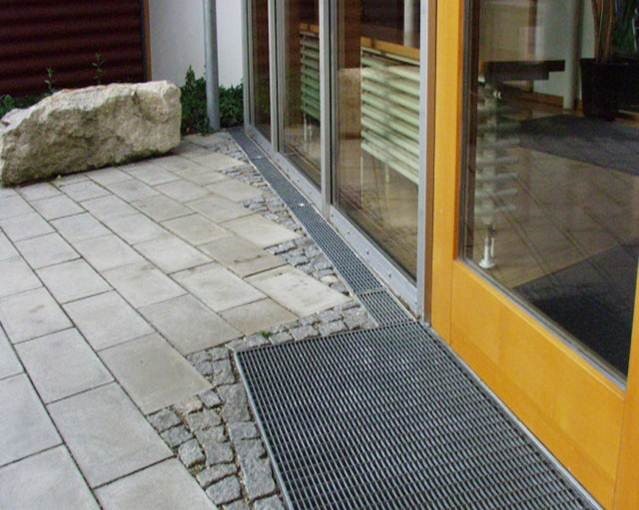

040. Typical Photo

[download]

070. Product Description

The TRS doorstep grille is manufactured from recycled composite with a choice of hot dip galvanized, or stainless steel grille lids. The TRS terrace grille is available in 12×12", 16×16" or 20×20" nominal sizes, each of which can be ordered in individual heights between 2"-12". The grilles can be supplied with an optional sealed collection tray. Drainage water can flow directly to the outlet or into the drainage layers. The product help prevents slipping and soiling, and reduces splash marks near doorways.

080. Application

TRS trench drains is an elegant drainage solution for entrance areas to reduce the risk of floodings, without having a direct sewege connection. TRS products can be used for residential and commercial use to protect from rainsplash, melting snow and everyday debris.

090. Frequently Asked Questions

Where should the large grilles be used and where the smaller ones?

In front of terrace doorways a small grille is insufficient in a downpour -- generally speaking the large sizes should always be used for safety in these locations. Any grilles with trays which need to be plumbed in must also be the larger type. The smaller ones may be used under overhangs or in areas with reduced rainfall exposure.

Are shoe cleaning brushes replaceable?

Grille inserts are attached by steel clips. The cleaning brushes are exchangeable by releasing the clips and repositioning them after replacement.

Are stainless steel grilles available?

Standard grilles are made of hot dip galvanized steel, but can also be ordered in stainless steel versions.

100. Benefits

Three standard sizes are available

The version with an opening on the bottom enables water flow into drainage layer

Replaceable mud brushes reduce mud tracking

Easy to maintain

Durable hard plastic housing

Grills also available in stainless steel

110. Accessories

• Shoe cleaning brush

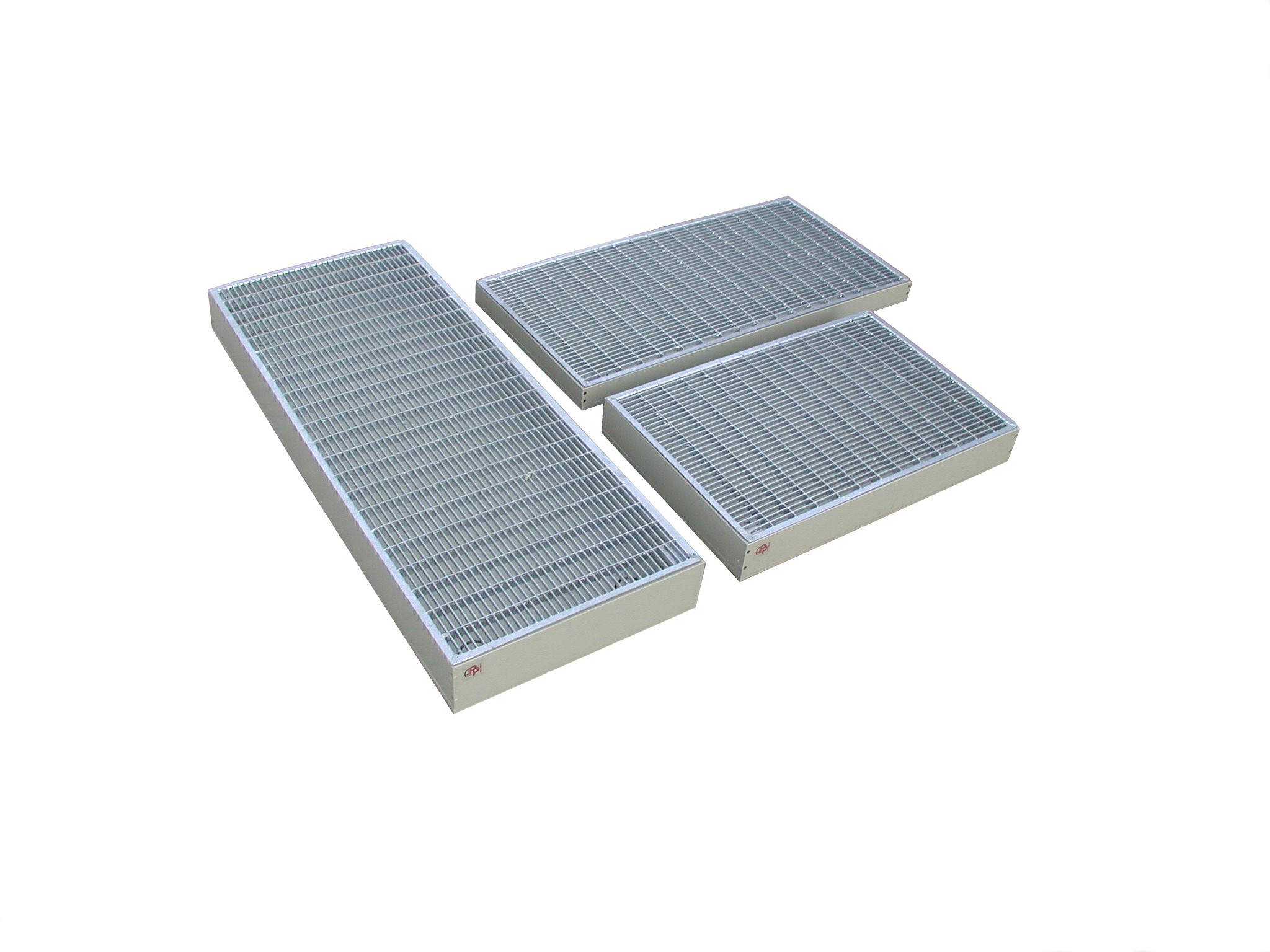

120. Studio / Macro Photos

[download]
