000. Part No.
210602010. Product Name
TRH-40-FF
020. Short Description
Height adjustable gully extensions for terraces

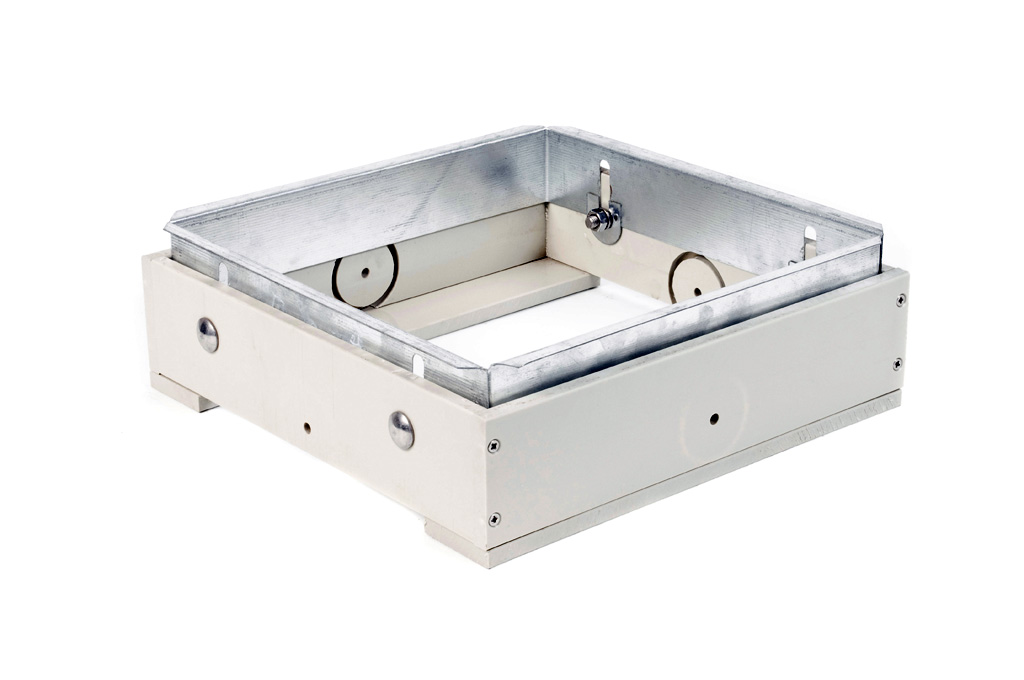

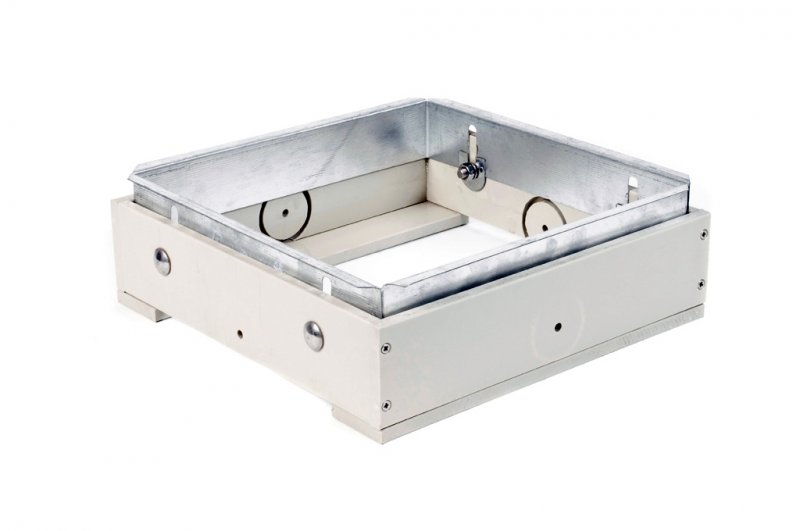

040. Typical Photo
[download]
070. Product Description
The TRH is an extension element for roof terrace gullys, housing is manufactured from hard composite with a choice of hot dip galvanized, or stainless steel grille covers. The TRH terrace grille is available in three sizes 12×12", 16×16" or 20×20" each of which can be ordered in individual heights between 2"-12" and additionally adjusted in +/- 2”.
080. Application
The TRH is an extension element for roof terrace gullys, housing is manufactured from hard composite with a choice of hot dip galvanized, or stainless steel grille covers. The TRH terrace grille is available in three sizes:12×12", 16×16" or 20×20", each of which can be ordered in individual heights between 2"-12" and additionally adjusted in +/- 2". The TRH gully extensions ensure the drainage of roof terraces, and simplify access and maintenance of the roof outlets. In large terrace areas additional TRH product installations are recommended outside of the gullies for controlling increased rainwater volume.
090. Frequently Asked Questions
- Available with stainless steel as well?
- Are special tools needed to adjust the height?
- What is the carrying capacity of the grills?
100. Benefits

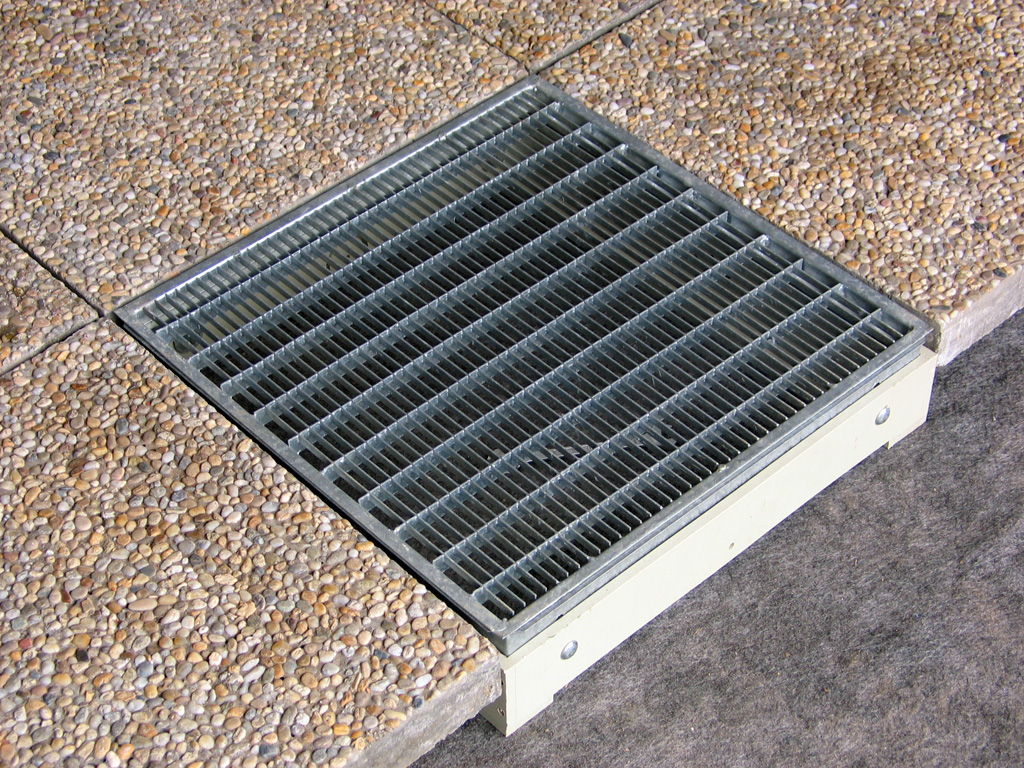

120. Studio / Macro Photos
[download]
