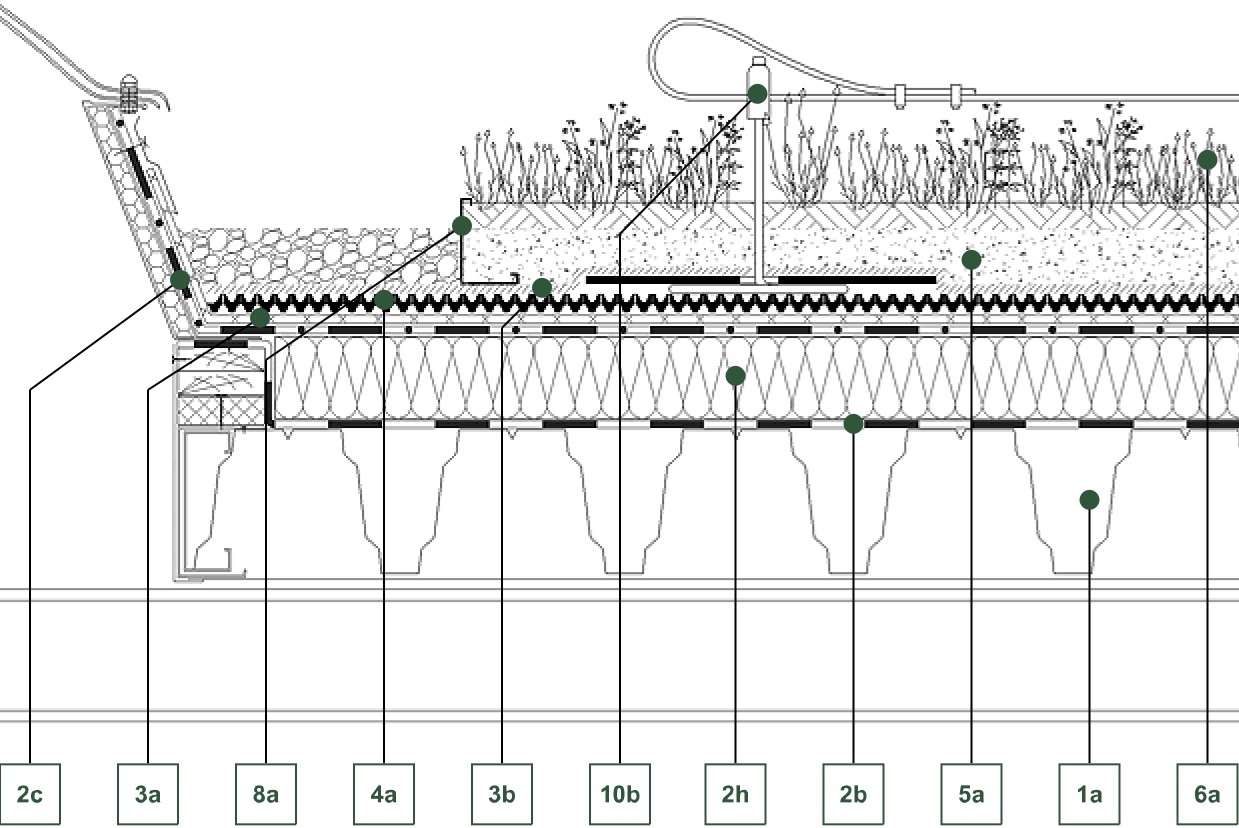

DIADEM 150 - SKYLIGHT / DIASAFE SYSTEM KLS

000. Part No.

901329_G150_01

002. Detail

Decking constructions
- 1a Steel trapezoid sheet structure
- 1b Reinforced concrete structure
- 1c Slope-forming layer
- 1d Measured planking on trussing
- 1e Gutter-supporting piping
Water isolation
- 2a VLT-100 separating layer »
- 2b FLW-400 ext. Root protection »
- 2b1 Vapor blocking layer
- 2c Waterproof membrane
- 2d Traditional waterproof membrane
- 2e FLW-800 int. Root protection, Vapor blocking layer »
- 2f Extruded PS-foam thermal insulation
- 2g Expanded PS-foam heat insulation
- 2h Thermal insulation
- 2i Bitumen strip, self adhesive
- 2j GF-1000 Skid resistant membrane »
- 2k Vapour control layer
Geotextile layers
- 3a VLU-300 mechanical protecting layer »
- 3a1 VLU-500 mechanical protecting layer »
- 3b VLF-150 filter layer »
- 3b1 VLF-200 filter layer »
- 3c VLS-500 protecting and water holding layer »
- 3dVLR-130 separating filter layer
- 3e Diadomino »
- 3f JGW-500 jute net »
Drainboards
- 4a DD-25H drainage board »
- 4b DD-40H Retention Board »
- 4c DE-60 drainage board »
- 4d Gardia-30 drainage board »

Growth medias
- 5a SEM-12 extensive growth medium »
- 5b SIM-30 extensive growth medium »
- 5c SIM-56 intensive growth medium »
- 5d SIM-84 subsoil »
Vegetation
- 6a Drought-resistant perennials
- 6b Perennials, lawn
- 6c Coppices/perennials, shrubs
- 6d Trees, bushes
Hydrotechnical products
- 7a KSR-10 Greenroof outlet box »
- 7b KSR-45 inspection boxes 17-6/8" »
- 7b1 KSR-80 inspection boxes 31-1/2" »
- 7c KSA-10 scupper boxes 4" »
- 7c1 KSA-30 inspection boxes 12" »
- 7d TRF terrace grid
- 7e TRH-40/40 terrace grid with adjustable height »
- 7e1 TRH-8/12 terrace grid with adjustable height »
- 7f TRS-60 foot grid »
- 7g RNS channel with ribbed grid
- 7h RNH-8/12 Roof Channel
- 7h1 RNH-8/12 Roof Channel »
- 7i RNH channel with adjustable height
- 7jBLH-30 terrace outlet
- 7k Water level regulating equipment »
- 7l TGS-40/25 inspection manhole 6" - 30" »
Edging element
- 8a KLS-AL-8/12 Gravel Board »
- 8b RDL edging piece 4" - 8"
- 8c RDA-40 edging piece 16" »
- 8d BW-30 concrete edging piece »
- 8d1 BW-60 concrete edging piece »
- 8d2 BW-40 concrete edging piece »
- 8e RDL edging »
  This product is not available in your region.
- 8f Perforated capping sheet »
- 8j KLS-AL-6/9 gravel board
Terraces accessories
- 9a FK-5 Slab spacer »
- 9b SLH-200 support-leg system »
- 9c PGE-110 fPlant containers »
- 9e Concrete slab
- 9i DiaTurtle-50 terrace pedestal
- 9k SLH-145 terrace pedestal
Safety technology
- 10a DRS-Light Handrail Structure »
- 10b FLG-30 fall arrest system »
- 10f GarDia-600 Safety Railing System

003. Description of Detail

Good practice dictates that roof areas should be properly maintained including ensuring that rainwater outlets are kept clear and free of any obstruction. Complementary to this requirement is the need to ensure maintenance personnel remain safe on the roof. The FLG-30 fall arrest system provides this safety element without the need to penetrate the waterproofing layer. EN 795 and EN 795/A1 the European norms are fully complied with.
