Details:

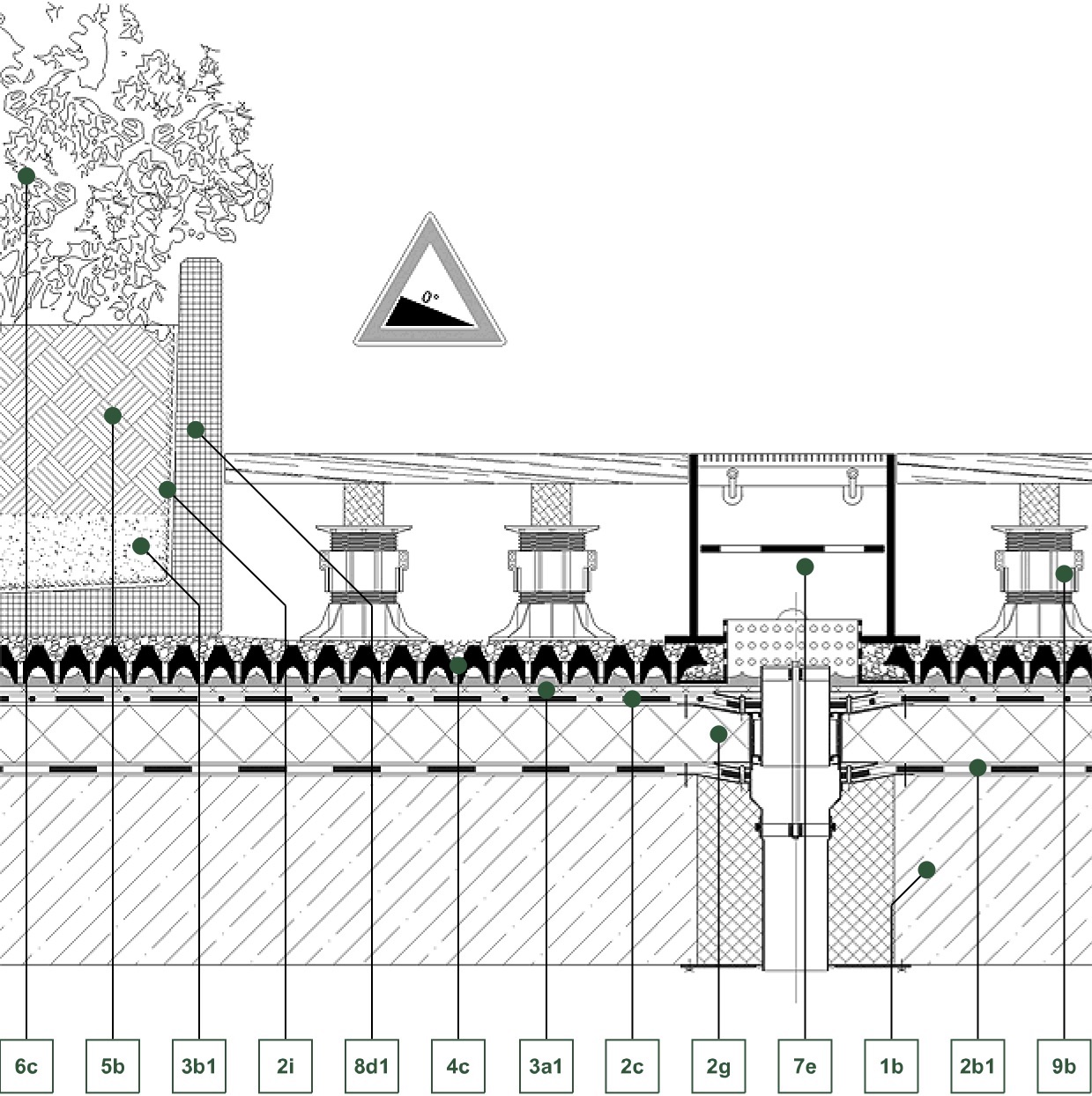

DIADEM 750 - TERRACE OUTLET EDGE / TRH GRILLE, BW

000. Part No.

901334_H750_01

002. Detail

Decking constructions
- 1a Steel trapezoid sheet structure
- 1b Reinforced concrete structure
- 1c Slope-forming layer
- 1d Measured planking on trussing
- 1e Gutter-supporting piping
Water isolation
- 2a VLT-100 separating layer »
- 2b FLW-400 ext. Root protection »
- 2b1 Vapor blocking layer
- 2c Waterproof membrane
- 2d Traditional waterproof membrane
- 2e FLW-800 int. Root protection, Vapor blocking layer »
- 2f Extruded PS-foam thermal insulation
- 2g Expanded PS-foam heat insulation
- 2h Thermal insulation
- 2i Bitumen strip, self adhesive
- 2j GF-1000 Skid resistant membrane »
- 2k Vapour control layer
Geotextile layers
- 3a VLU-300 mechanical protecting layer »
- 3a1 VLU-500 mechanical protecting layer »
- 3b VLF-150 filter layer »
- 3b1 VLF-200 filter layer »
- 3c VLS-500 protecting and water holding layer »
- 3dVLR-130 separating filter layer
- 3e Diadomino »
- 3f JGW-500 jute net »
Drainboards
- 4a DD-25H drainage board »
- 4b DD-40H Retention Board »
- 4c DE-60 drainage board »
- 4d Gardia-30 drainage board »

Growth medias
- 5a SEM-12 extensive growth medium »
- 5b SIM-30 extensive growth medium »
- 5c SIM-56 intensive growth medium »
- 5d SIM-84 subsoil »
Vegetation
- 6a Drought-resistant perennials
- 6b Perennials, lawn
- 6c Coppices/perennials, shrubs
- 6d Trees, bushes
Hydrotechnical products
- 7a KSR-10 Greenroof outlet box »
- 7b KSR-45 inspection boxes 17-6/8" »
- 7b1 KSR-80 inspection boxes 31-1/2" »
- 7c KSA-10 scupper boxes 4" »
- 7c1 KSA-30 inspection boxes 12" »
- 7d TRF terrace grid
- 7e TRH-40/40 terrace grid with adjustable height »
- 7e1 TRH-8/12 terrace grid with adjustable height »
- 7f TRS-60 foot grid »
- 7g RNS channel with ribbed grid
- 7h RNH-8/12 Roof Channel
- 7h1 RNH-8/12 Roof Channel »
- 7i RNH channel with adjustable height
- 7jBLH-30 terrace outlet
- 7k Water level regulating equipment »
- 7l TGS-40/25 inspection manhole 6" - 30" »
Edging element
- 8a KLS-AL-8/12 Gravel Board »
- 8b RDL edging piece 4" - 8"
- 8c RDA-40 edging piece 16" »
- 8d BW-30 concrete edging piece »
- 8d1 BW-60 concrete edging piece »
- 8d2 BW-40 concrete edging piece »
- 8e RDL edging »
  This product is not available in your region.
- 8f Perforated capping sheet »
- 8j KLS-AL-6/9 gravel board
Terraces accessories
- 9a FK-5 Slab spacer »
- 9b SLH-200 support-leg system »
- 9c PGE-110 fPlant containers »
- 9e Concrete slab
- 9i DiaTurtle-50 terrace pedestal
- 9k SLH-145 terrace pedestal
Safety technology
- 10a DRS-Light Handrail Structure »
- 10b FLG-30 fall arrest system »
- 10f GarDia-600 Safety Railing System

003. Description of Detail

In some instances it may be neccessary to place decking over the rainwater outlets. Access to these outlets is still essential and is easily achieved by means of the TRF Terrace Grating. In this case there is no need for water retention. The DiaDrain Drainage Board is installed with the venting holes face down. The DiaDrain is then filled with chippings. This gives added fire protection to the system whilst drainage remains unimpeded. Finally the joints of the BW Concrete Kerb are sealed with a self adhesive bitumen strip.
